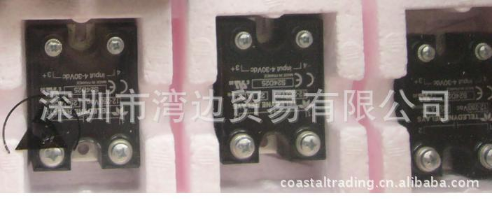

制造商:  Teledyne Relays  , Teledyne继电器，Teledyne价格

产品种类:  Solid State Relays - Chassis Mount
固态继电器 25A 240VAC Zero Cross4 VDC to 30 VDC
RoHS:  否
控制电压范围:  4 VDC to 30 VDC
负载电压额定值:  240 VAC
负载电流额定值:  25 A
继电器类型:  Single Output
串联:  S
端接类型:  Screw

© 2003 TELEDYNE RELAYS (800) 284-7007 1
S32003Q1
Single Output to 125A 660 Vac
AC/DC Control
FEATURES/BENEFITS
• Industry standard package
• Internal snubber (except S60 models)
• Designed for all types of loads
• AC or DC control available
• Excellent thermal performance
• Tight zero-cross window for low EMI
• High immunity to surges
DESCRIPTION
The Series S single-phase relays are designed for all
types of loads. The design incorporates an SCR or
triac output. The relays utilize optical isolation to protect
the control from load transients. All contain an internal
snubber for output protection. High-current models are
excellent for motor and phase angle control.
APPLICATIONS
• Heating control
• Motor control
• Uninterruptible power supplies
• Light dimmers
• Industrial and process control
• On/Off controls of AC equipment
APPROVALS
S24 and S48 models are UL recognized.
UL File Number: E128555.

THERMAL CHARACTERISTICS
Figure 5a — 12A output current
Figure 5b — 25A output current
Figure 5c — 40A output current
Figure 5d — 50A output current
Figure 5e — 75A output current
Figure 5f — 95A output current
Figure 5g — 125A output current
NOTES:
1. Electrical specifications measured at 25°C unless otherwise
specified.
2. For 800Hz applications, contact factory.
3. For additional/custom options, contact factory.
OPTIONAL ADD-ONS
Please order add-ons separately:
• -12 — Thermal pad installed.
• -14 — Plastic touch-proof cover.
