XM-C3Y7-0404D
XR-C3Y7-0404D ROHS

Amplifiers放大器

X-MWblocks > Amplifiers >   XM-C3Y7-0404D

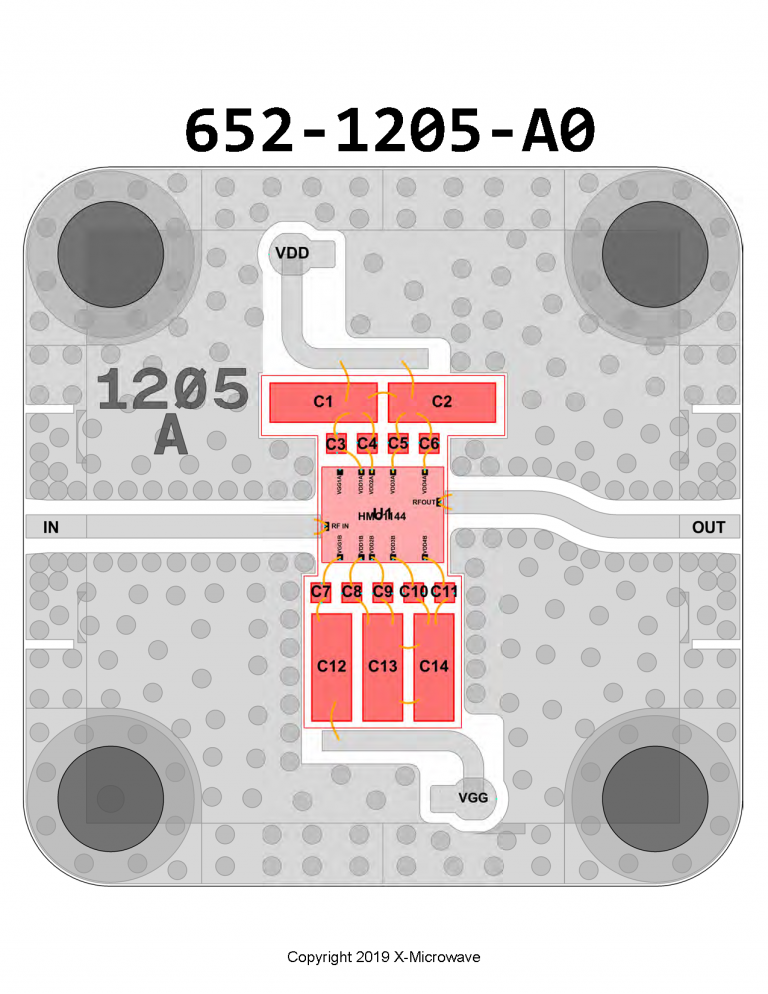

Amplifier, HMC1144 [PCB: 1205]
DIE
Recommended Bias Controller: XM-C3Y8-0404D

Low Freq35000 MHz

High Freq70000 MHz

Gain19 dB

NF5 dB

P1dB21 dBm

PSat22 dBm

IP328 dBm

Bias Instruction偏差指示

Power-up Sequence

1. Apply VG = -2.0V

2. Apply VD = 4.0V

3. Adjust VG more positive until IDQ reaches 320mA

Note: Do not exceed 0V

4. Apply the RF input signal

Power-down Sequence

1. Turn off the RF input signal

2. Adjust VG to -2.0V

3. Adjust VD to 0V

4. Adjust VG to 0V
