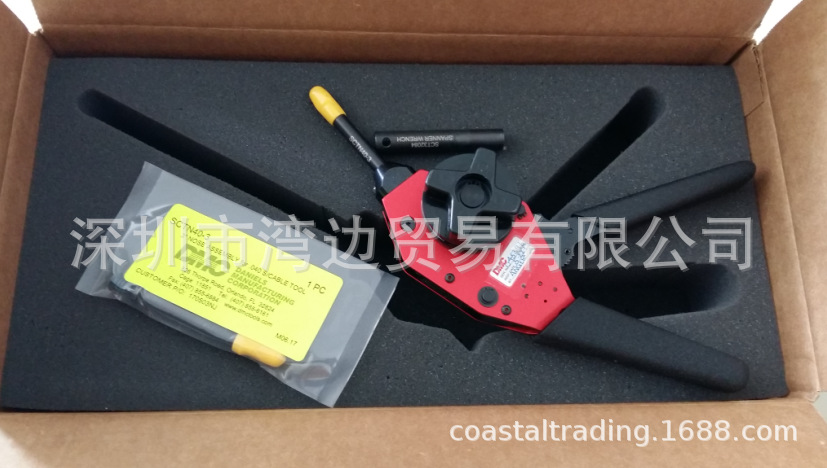

型号：HX4和HX3全系列
采购热线： 13723701128 （V同号）
0755-86216601
深圳湾边贸易供应 DMC工具Daniels Manufacturing全系列供应
DMC 全称Daniels Manufacturing公司介绍
DMC公司在1949年创立，位于美国佛州奥兰多，其生产的压接工具符合符合美军标M22520标准，在军用飞机和航天项目上服务超过60年。通过不断规划和增加产品线，现在正在逐步深入满足其他高科技领域，如电信、光纤、激光、电子包装等诸多领域的需求。
DMC是Mil-Qualified压接端接工具，接线系统维护套件和插入/拆卸工具的制造商。DMC还提供Backshell装配工具，ALPHATRON压接拉力测试仪和SAFE-T-CABLE，省时省力的替代安全线。通常这类工具的功能与连接器OEM厂家的原型一致。 如冲压型接触件，绝缘或非绝缘端子，接头，同轴连接器等。这些工具牢固的结构保证了其足够长的使用寿命。
DMC工具小型可调节压接工具AFM8系列
小型压接工具- AFM8 (M22520/2-01)
符合美军标MIL-DTL-22520/2，DMC AFM8工具专为广泛用于电子系统的小型连接器所设计。AFM8满足的线径范围为AWG 20到32#。
每一个转接头或定位器上均黏贴一个标签.这个标签标出了压接的接触件型号，转接头选择的颜色标示，以及对应线径的刻度盘位置选择。
我们建议对工具进行定期的校准。您可以通过使用M22520/3-1止通规（DMC产品号G125）在刻度盘8#位置轻松的完成检验操作。AFM8压接工具重约10盎司。
除了保持工具的清洁及合理的储存条件外，工具仍然需要必要的维护和保养。
深圳湾边贸易供应DMC工具全系列型号：
| 军用型号 | DMC 型号 | 品名 | NSN | ||
| M22520/1-01 | DMC | AF8 | TOOL FRAME | 5120-01-335-8571 | |
| M22520/1-02 | DMC | TH1A | TURRET | 5120-01-335-8834 | |
| M22520/1-03 | DMC | TH4 | TURRET | 5120-01-335-8835 | |
| M22520/1-04 | DMC | TH163 | TURRET | 5120-01-335-8836 | |
| M22520/1-05 | DMC | UH2-5 | ADJUSTABLE POSITIONER | 5120-01-335-8583 | |
| M22520/1-06 | DMC | TP45 | POSITIONER | 5120-01-335-8584 | |
| M22520/1-07 | DMC | TP85 | POSITIONER | 5120-01-335-8585 | |
| M22520/1-08 | DMC | TH199S | TURRET | 5120-01-335-8837 | |
| M22520/1-09 | DMC | TP360 | POSITIONER | 5120-01-335-8586 | |
| M22520/1-10 | DMC | TP365 | POSITIONER | 5120-01-335-8587 | |
| M22520/1-11 | DMC | TP465 | POSITIONER | 5120-01-335-8588 | |
| M22520/1-12 | DMC | TH270 | TURRET | 5120-01-335-8838 | |
| M22520/1-13 | DMC | TH285 | TURRET | 5120-01-335-8839 | |
| M22520/1-14 | DMC | TH286 | TURRET | 5120-01-335-8840 | |
| M22520/1-15 | DMC | TP485 | POSITIONER | 5120-01-335-8589 | |
| M22520/1-16 | DMC | TP513 | POSITIONER | 5120-01-335-8590 | |
| M22520/1-17 | DMC | TP651 | POSITIONER | 5120-01-335-8591 | |
| M22520/3-1 | DMC | G125 | GAGE | 5220-01-329-6002 | |
| DMC | DMC1186 | M22520/1 TOOL KIT |
AFM8压接工具，量规以及所有的美军标定位器。
|
MILITARY P/N |
DMC P/N |
DESCRIPTION |
NSN |
|
M22520/2-01 |
AFM8 |
TOOL FRAME |
5120-01-335-8572 |
|
M22520/2-02 |
K1S |
POSITIONER |
5120-01-335-8592 |
|
M22520/2-03 |
K60S |
POSITIONER |
5120-01-335-8593 |
|
M22520/2-04 |
K151 |
POSITIONER |
5120-01-335-8594 |
|
M22520/2-05 |
K3 |
POSITIONER |
5120-01-335-8595 |
|
M22520/2-06 |
K41 |
POSITIONER |
5120-01-335-8624 |
|
M22520/2-07 |
K40 |
POSITIONER |
5120-01-335-8625 |
|
M22520/2-08 |
K13-1 |
POSITIONER |
5120-01-335-8626 |
|
M22520/2-09 |
K42 |
POSITIONER |
5120-01-335-8627 |
|
M22520/2-10 |
K43 |
POSITIONER |
5120-01-335-8628 |
|
M22520/2-11 |
K287 |
POSITIONER |
5120-01-335-8629 |
|
M22520/2-12 |
K286 |
POSITIONER |
5120-01-335-8630 |
|
M22520/2-13 |
K338 |
POSITIONER |
5120-01-335-8631 |
|
M22520/2-14 |
K340 |
POSITIONER |
5120-01-335-8632 |
|
M22520/2-15 |
K341 |
POSITIONER |
5120-01-335-8633 |
|
M22520/2-16 |
K339 |
POSITIONER |
5120-01-335-8634 |
|
M22520/2-17 |
K342 |
POSITIONER |
5120-01-335-8635 |
|
M22520/2-18 |
K343 |
POSITIONER |
5120-01-335-8636 |
|
M22520/2-19 |
K330-2 |
POSITIONER |
5120-01-335-8637 |
|
M22520/2-20 |
K331-2 |
POSITIONER |
5120-01-335-8638 |
|
M22520/2-21 |
K332-2 |
POSITIONER |
5120-01-335-8609 |
|
M22520/2-22 |
K212 |
POSITIONER |
5120-01-335-8610 |
|
M22520/2-23 |
K267-1 |
POSITIONER |
5120-01-335-8611 |
|
M22520/2-24 |
K75S-1 |
POSITIONER |
5120-01-335-8612 |
|
M22520/2-25 |
K261-1 |
POSITIONER |
5120-01-335-8613 |
|
M22520/2-26 |
K262-1 |
POSITIONER |
5120-01-335-8614 |
|
M22520/2-27 |
K269-1 |
POSITIONER |
5120-01-335-8615 |
|
M22520/2-28 |
K373-1 |
POSITIONER |
5120-01-335-8616 |
|
M22520/2-29 |
K372-1 |
POSITIONER |
5120-01-335-8617 |
|
M22520/2-30 |
K404 |
POSITIONER |
5120-01-335-8618 |
|
M22520/2-31 |
K406 |
POSITIONER |
5120-01-335-8619 |
|
M22520/2-32 |
K496 |
POSITIONER |
5120-01-335-8620 |
|
M22520/2-33 |
K74S |
POSITIONER |
5120-01-335-8621 |
|
M22520/2-34 |
K323 |
POSITIONER |
5120-01-335-8622 |
|
M22520/2-35 |
K532-1 |
POSITIONER |
5120-01-335-8623 |
|
M22520/2-36 |
K473 |
POSITIONER |
5120-01-335-8596 |
|
M22520/2-37 |
K709 |
POSITIONER |
5120-01-361-9666 |
|
M22520/3-1 |
G125 |
GAGE |
5220-00-165-7604 |
|
|
SK2/2 |
ADJUSTABLE POSITIONER |
5120-01-171-1569 |
|
|
DMC274 |
M22520/2 TOOL KIT |
5180-01-259-0512 |
中型压接工具 - MH860 (M22520/7-01)
符合美军标MIL-DTL-22520/7，DMC MH860压接工具的开发是为了满足通用性电子设备的压接需要。
MH860满足的线径范围为AWG 16到28#。
工具气动版本请点击这里.
DMC123工具箱包含MH860，量规以及所有的美军标定位器。
|
MILITARY P/N |
DMC P/N |
DESCRIPTION |
NSN |
|
M22520/7-01 |
MH860 |
TOOL FRAME |
5120-01-335-8573 |
|
M22520/7-02 |
86-1S |
POSITIONER |
5120-01-335-8597 |
|
M225207-03 |
86-2 |
POSITIONER |
5120-01-335-8598 |
|
M22520/7-04 |
86-3 |
POSITIONER |
5120-01-335-8599 |
|
M22520/7-05 |
86-4 |
POSITIONER |
5120-01-335-8600 |
|
M22520/7-06 |
86-5 |
POSITIONER |
5120-01-335-8601 |
|
M22520/7-07 |
86-6 |
POSITIONER |
5120-01-335-8602 |
|
M225207-08 |
86-7 |
POSITIONER |
5120-01-335-8603 |
|
M225207-09 |
86-11S |
POSITIONER |
5120-01-335-8604 |
|
M225207-10 |
86-12S |
POSITIONER |
5120-01-335-8605 |
|
M22520/7-11 |
86-19 |
POSITIONER |
5120-01-335-8606 |
|
M22520/7-12 |
86-20 |
POSITIONER |
5120-01-335-8607 |
|
M22520/7-13 |
86-21 |
POSITIONER |
5120-01-335-8608 |
|
M22520/3-3 |
G145 |
GAGE |
5120-00-338-0378 |
|
|
86-37 |
ADJUSTABLE POSITIONER |
|
|
|
DMC123 |
M22520/7 TOOL KIT |
5180-01-355-5616 |
常用压膜及工具清单
DIE P/N DIE CLOSURE DIMENSIONS
DMCP/N ♦ MILITARYP/N NATIONAL STOCKNUMBER AHEX. LENGTH BHEX. LENGTH
HX4 M22520/5-01 5120-01-335-8575 Standard Crimp Tool Frame
HXE4B N/A N/A Battery Powered Hydraulic Crimp Tool Frame
HX23 N/A N/A Pneumatic Crimp Tool Frame
HD37 N/A N/A Hydraulic Crimp Tool Frame
HDE37B N/A N/A Battery Powered Hydraulic Crimp Tool Frame
EHCY N/A N/A Electro-Hydraulic Crimp Tool Frame
Y200P M22520/5-02 5120-01-335-8244 .091 .090 .068 .270
Y196 M22520/5-03 5120-01-335-8245 .128 .325 .105 .325
Y152 M22520/5-04 5120-01-335-8246 .138 .090 .118 .270
Y197 M22520/5-05 5120-01-335-8247 .213 .325 .178 .325
Y203 M22520/5-06 5120-01-335-8248 .128 .094
Y195 M22520/5-07 5120-01-335-8249 .255 .325
Y215 M22520/5-08 5120-01-335-8250 .128 .375
Y204P M22520/5-09 5120-01-335-8251 .178 .400 .068 .093
Y189 M22520/5-10 5120-01-335-8252 .160 .400
Y205P M22520/5-11 5120-01-335-8253 .213 .400 .068 .093
Y206P M22520/5-13 5120-01-335-8254 .255 .400 .068 .093
Y207P M22520/5-15 5120-01-335-8255 .263 .400 .068 .093
Y193 M22520/5-17 5120-01-335-8256 .118 .375
Y142 M22520/5-19 5120-01-335-8257 .255 .400 .213 .400
Y149 M22520/5-21 5120-01-335-8258 .475 .400
Y145 M22520/5-23 5120-01-335-8259 .384 .400
Y110P M22520/5-25 5120-01-335-8260 .429 .400 .100 .120
Y151 M22520/5-27 5120-01-335-8261 .532 .400
Y109P M22520/5-29 5120-01-335-8262 .324 .400 .100 .120
Y150 M22520/5-31 5120-01-335-8263 .501 .400
Y136 M22520/5-33 5120-01-335-8264 .343 .400 .105 .400
Y137 M22520/5-35 5120-01-335-8265 .324 .400 .128 .400
Y138 M22520/5-37 5120-01-335-8266 .314 .400 .151 .400
Y139 M22520/5-39 5120-01-335-8267 .309 .400 .160 .400
Y140 M22520/5-41 5120-01-335-8268 .290 .400 .178 .400
Y141 M22520/5-43 5120-01-335-8269 .268 .400 .197 .400
Y143 M22520/5-45 5120-01-335-8270 .231 .400 .218 .400
Y144 M22520/5-47 5120-01-335-8271 .359 .400
Y146 M22520/5-49 5120-01-335-8292 .401 .400
Y147 M22520/5-51 5120-01-335-8293 .431 .400
Y148 M22520/5-53 5120-01-335-8294 .454 .400
Y102 M22520/5-55 5120-01-335-8295 .324 .400
Y209P M22520/5-57 5120-01-335-8296 .213 .400 .100 .120
Y208P M22520/5-59 5120-01-335-8297 .255 .400 .100 .100
Y178 M22520/5-61 5120-01-335-8298 .429 .400
Y314P M22520/5-63 5120-01-335-8299 .263 .400 .091 .091
Y501 M22520/5-100 5120-01-335-8300 Pre-Insulated Terminal Crimp 26-10 AWG
Y527 M22520/5-101 5120-01-335-8301 Pre-Insulated Splice Crimp 26-20 AWG
Y539 M22520/5-102 5120-01-335-8302 Splice Crimp 12-16 AWG
Y540 M22520/5-103 5120-01-335-8303 Splice Crimp 16-26 AWG
Y631 M22520/5-105 5120-01-361-9554 .218 .307
♦ Die part numbers ending in "P" indicate the the die set has an alignment pin.
Non-military dies are available for a range of applications. Contact DMC for Details.
Common Hex Dies for HX3 & PHX3
DIE P/N DIE CLOSURE DIMENSIONS
DMCP/N MILITARYP/N NATIONAL STOCKNUMBER AHEX. LENGTH BHEX. LENGTH
HX3 M22520/10-1 5120-01-335-8582 Miniature Crimp Tool Frame
PHX3 -- -- Pneumatic Crimp Tool Frame
X115S M22520/10-2 5120-01-335-8304 .091 .090 .068 .270
X103 M22520/10-3 5120-01-335-8305 .255 .325
X123 M22520/10-4 5120-01-335-8277 .138 .090 .118 .270
X101 M22520/10-5 5120-01-335-8278 .128 .325 .105 .325
X125 M22520/10-6 5120-01-335-8279 .160 .400
X102 M22520/10-7 5120-01-335-8280 .213 .325 .178 .325
X140 M22520/10-8 5120-01-335-8281 .128 .093
X129 M22520/10-9 5120-01-335-8282 .118 .327
X136 M22520/10-10 5120-01-335-8283 .128 .375
X225 M22520/10-11 5120-01-335-8284 .105 .400
X118 M22520/10-13 5120-01-335-8285 .128 .400
X226 M22520/10-15 5120-01-335-8286 .151 .400
X149 M22520/10-17 5120-01-335-8287 .178 .400
X147 M22520/10-19 5120-01-335-8288 .197 .400
X144 M22520/10-21 5120-01-335-8289 .213 .400
X155 M22520/10-23 5120-01-335-8290 .218 .400
X156 M22520/10-25 .231 .400
X187 M22520/10-27 5120-01-335-8291 .255 .400
X515 M22520/10-100 5120-01-335-8272 Terminal/Splice Crimp 12-10 AWG
X511 M22520/10-101 5120-01-335-8273 Terminal/Splice Crimp 26-14 AWG
X525 M22520/10-102 5120-01-335-8274 Terminal/Splice Crimp 26-24 AWG
X527 M22520/10-103 5120-01-335-8275 Splice Crimp 16-12 AWG
X528 M22520/10-104 5120-01-335-8276 Splice Crimp 26-16 AWG
DCT4系列工具
DIE P/N
DCT4-101
DCT4-102
DCT4-104
DCT4-105
DCT4-106
DCT4-107
DCT4-108
DCT4-109
DCT4-110
DCT4-111
DCT4-117
DCT4-118
DCT4-119
DCT4-120
DCT4-121
DCT4-122
DCT4-124
DCT4-128
DCT4-129
DCT4-130
DCT4-138
DCT4-139
DCT4-140
DCT4-141
DCT4-142
DCT4-144
DCT4-145
DCT4-147
DCT4-148
DCT4-149
DCT4-151
DCT4-154
DCT4-155
DCT4-157
DCT4-158
DCT4-160
DCT4-161
DCT4-162
DCT4-163
DCT4-166
DCT4-167
DCT4-169
DCT4-170
DCT4-173
DCT4-175
DCT4-176
DCT4-178
DCT4-179
DCT4-180
DCT4-181
DCT4-182
DCT4-183
DCT4-185
DCT4-187
DCT4-188
DCT4-189
DCT4-192
备注：所列价格并非成交价，如有疑问，敬请来电咨询！
